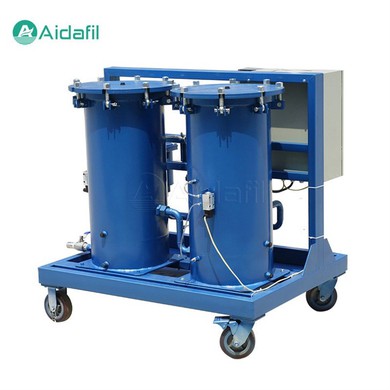

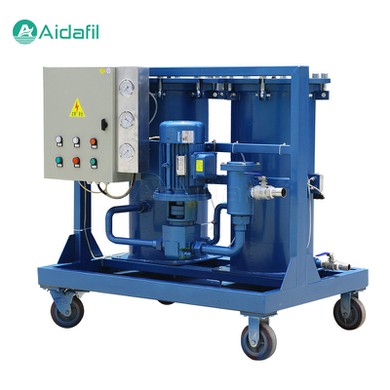

High Solid Content Lubricating Oil Purifier

The high solid content lubricating oil purifier is a specialized filtration system designed to effectively remove solid contaminants from lubricating oils. This oil purifier employs a multi-stage filtration process that utilizes different filter media with varying pore sizes. This ensures the capture of a wide range of solid particles, from coarse contaminants to fine dust particles.

The design of the High Solid Content Lubricating Oil Purifier is characterized by its ability to handle oils with a significant amount of solid contaminants without clogging or reducing filtration efficiency. The unit typically consists of a robust housing, often made from materials like stainless steel, which can withstand the rigors of continuous industrial use while providing a durable, corrosion-resistant environment for the filtration process.

The purifier operates on the principle of separating solid contaminants from the oil by passing the oil through a series of filters. These filters are selected based on their micron rating, which determines the size of particles they can capture. The filtration stages are strategically arranged to remove increasingly smaller particles as the oil progresses through the system.

Product parameters

Rated Flow (L/min) : 32 - 200

Rated Pressure (MPa) : 0.6

Coarse Filter Precision (μm) : 80, 120, 180

Grade 1 Filter Precision (μm) : 5, 10, 20

Grade 2 Filter Precision (μm) : 3

Differential Pressure : 0.2MPa

Recommended Viscosity (cSt) : 10 - 160

Voltage : AC 380V Three - phase 50Hz

Weight (kg) : 220 - 600

Motor Power (kw) : 0.75 - 5.5

Key Features

The high solid content lubricating oil purifier is designed to address the challenges posed by high solid particle content in lubricating oils. Some of its key features include:

1. High filtration efficiency. This purifier utilizes advanced filter media that boasts a high efficiency rating, ensuring the effective removal of even the smallest solid particles from the lubricating oil.

2. Large filter area. With a larger filter area compared to conventional purifiers, this device can handle a higher flow rate of lubricating oil, making it suitable for high-volume applications.

3. Automated operation. The purifier is equipped with smart sensors and a control system that automatically regulates the filtration process, ensuring optimal performance and reducing the need for manual intervention.

4. Compact design. Despite its advanced features, the high solid content lubricating oil purifier is designed to be compact, making it easy to install and integrate into existing machinery systems.

Benefits

The high solid content lubricating oil purifier offers a multitude of benefits that contribute to the improved efficiency and longevity of industrial machinery. These benefits include:

1. Enhanced equipment performance. By effectively removing solid particles, the purifier helps to maintain the optimal viscosity and fluidity of lubricating oils, ensuring smoother operation and reduced wear on machinery components.

2. Extended equipment lifespan. With regular use of the purifier, the lifespan of industrial machinery can be significantly extended due to the reduced risk of wear and tear caused by contaminated lubricating oils.

3. Reduced maintenance costs. The purifier helps to prevent the premature failure of machinery components, thereby reducing the need for frequent repairs and replacements, which can be costly.

4. Improved energy efficiency. By ensuring the cleanliness of lubricating oils, the purifier helps to reduce energy consumption, as machinery operates more efficiently with less resistance.

5. Environmental benefits. The purifier's ability to recycle lubricating oils reduces the consumption of virgin oils and the generation of waste, thereby promoting environmental sustainability.

Applications

The applications for the high solid content lubricating oil purifiers are widespread across industries where lubricating oils are crucial for maintaining equipment performance. Some examples include:

1. Manufacturing. Industrial machines used in manufacturing processes rely on lubricating oils to function correctly. Contaminants can cause wear and affect product quality.

2. Automotive industry. Engines, transmissions, and other critical automotive components require clean lubricants to operate efficiently and avoid premature wear.

3. Marine and aviation industries. Fuel systems and hydraulic fluids in aircraft and marine vessels must meet strict performance standards, necessitating effective filtration.

4. Mining and metal processing. Heavy equipment used in mining and metal processing can generate significant amounts of heat and friction, making clean lubricants essential for prolonged operation.

5. Food and beverage production. Machinery used in food and beverage production requires clean lubricants to comply with strict hygiene standards.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
