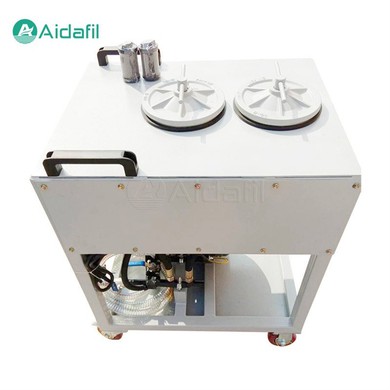

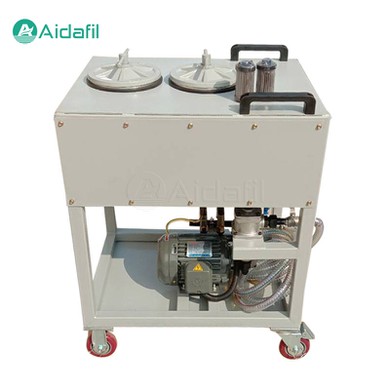

Portable High Precision Oil Filter Machine

The portable high precision oil filter machine can quickly remove water, gas, impurities and volatiles in different oil products, improve the quality of oil, restore the viscosity, flash point and performance of oil, and ensure the normal operation of hydraulic system, power system and lubrication system.

The portable high precision oil filter machine boasts a robust yet compact design, allowing it to be easily transported and utilized in various work environments without compromising its structural integrity or filtration capabilities. Constructed from high-grade materials such as stainless steel and durable polymers, the machine is resistant to corrosion, wear, and extreme temperatures, ensuring long-lasting performance even under harsh operating conditions.

Its modular structure allows for quick assembly and disassembly, facilitating effortless maintenance, cleaning, and part replacement. The machine is equipped with heavy-duty casters and ergonomic handles, enabling operators to maneuver it effortlessly across different locations, whether in workshops, factories, or remote field sites. A well-organized control panel with intuitive interfaces and clear instructions further enhances the user experience, making operation and monitoring straightforward for both experienced technicians and novice users.

Technical parameters

Product type : High precision oil purifier

Rated flow (L/min) : 3, 6, 9, 12, 15, 18, 24

Rated pressure (MPa) : 1.6

Initial pressure loss (MPa) : ≤0.25

Coarse filter precision (μm) : 100

Fine filter precision (μm) : NAS1638 3-6 Grade

Differential pressure (MPa) : 0.8

Working temperature (°C) : 5 - 80

Recommended viscosity (cSt) : 10 - 180

Voltage : AC380V Three-phase

Product highlights

1. High-efficiency electric heating system, automatic control, less power consumption.

2. Strong ability of demulsification, separating oil and water efficiently.

3. Large area three-dimensional flash distillation technology.

4. Three stage filtration system (primary filter, secondary filter, fine filter).

5. Interlocking protection mechanism.

6. Automatic oil level controller.

7. Humanized design, easy control for operation and supervision.

8. Automatic pressure protect system.

Advanced Filtration Technology

At the heart of the portable high precision oil filter machine lies a sophisticated multi-stage filtration system that effectively removes contaminants down to incredibly low micron levels. This system typically consists of the following stages:

a) Pre-filtering - A coarse mesh filter captures large particles, such as metal chips, dirt, and other debris, preventing them from entering the subsequent stages and potentially damaging the finer filters.

b) Primary filtration - A high-efficiency pleated or depth filter element captures smaller contaminants, including particulates, water droplets, and air bubbles, ensuring a significant reduction in oil impurities.

c) Fine filtration - For applications requiring ultra-high purity oil, a precision filter element, often made of glass fiber or sintered metal, can be incorporated to remove submicron particles and dissolved water, achieving NAS Class 6 or better cleanliness levels.

Versatile Application Range

The portable high precision oil filter machine is suitable for filtering a wide variety of oils, including hydraulic oils, lubricating oils, transformer oils, turbine oils, gear oils, and engine oils. Its adaptability to different viscosities, temperatures, and flow rates makes it ideal for various industries, such as manufacturing, power generation, mining, construction, transportation, and more. Some common applications include:

a) Oil conditioning during equipment commissioning or after repairs

b) Routine oil change and maintenance

c) Emergency oil purification after contamination events

d) Offline filtration for critical systems

e) Oil rejuvenation and recycling

Economic Benefits

The portable high precision oil filter machine offers numerous economic advantages by:

a) Extending oil life. By removing contaminants and restoring oil properties, the machine reduces the frequency of oil changes, lowering overall lubricant costs and minimizing waste disposal expenses.

b) Preventing equipment damage. Clean, dry oil minimizes wear and tear on machinery components, reducing the likelihood of costly breakdowns, repairs, and downtime.

c) Enhancing energy efficiency. Improved oil quality can lead to reduced friction and improved heat dissipation, resulting in increased energy savings and prolonged equipment lifespan.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
