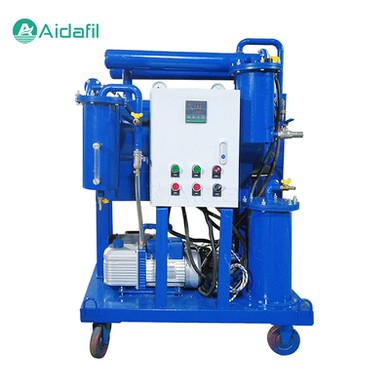

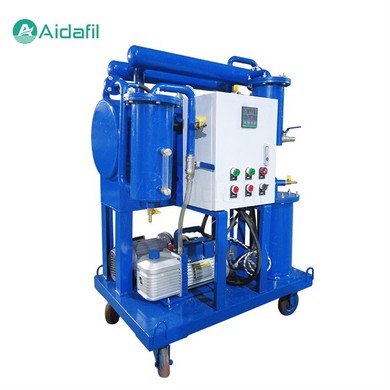

Vacuum Dehydrator Oil Purifier For Engine Oil Purification

The vacuum dehydrator oil purifier for engine oil purification is a machine designed to remove water, moisture, and impurities from engine oil. By doing so, it helps extend the life of the oil and the engine it lubricates. The device works by using a combination of vacuum and filtration processes to remove contaminants and moisture from the oil.

Working Principle

The vacuum dehydrator oil purifier for engine oil purification works under the the combination of multiple physical processes, aiming to effectively remove water and other impurities in the engine oil.

Firstly, when the vacuum pump starts, it will extract the air in the vacuum tank, thereby creating a low-pressure environment in the tank. Due to the external oil pressure being higher than the pressure inside the vacuum tank, the oil flows into the primary filter through the inlet pipe under the action of atmospheric pressure. At this stage, larger particle impurities will be intercepted and removed by the primary filter.

Next, the oil treated by the primary filter will flow to the heater, where the oil will undergo heat exchange and be heated. The heated oil then flows through a specially designed water separator, which uses enhanced hydrophilic and hydrophobic technology to change the interaction force between oil molecules and water molecules, causing small water droplets to gather into larger droplets and separate from the oil. These water droplets will deposit in the water storage device and be discharged.

Subsequently, the oil that has removed most of the water will enter the vacuum separator. Inside the vacuum separator, the oil will be affected by an extremely low pressure, which helps to further separate the dissolved water, dissolved gases, free water, and free gases in the oil.

Finally, the oil will pass through the fine filter, which captures any remaining small particle impurities. In this way, the clean oil can be discharged from the oil outlet, completing the entire vacuum dehydration oil filtering process.

Key Features

1. High Efficiency - The oil purifier is designed to efficiently remove water, impurities, and contaminants from the engine oil, ensuring optimal performance.

2. User-Friendly Design - The vacuum dehydrator oil purifier features an intuitive control panel and easy-to-understand instructions, making it accessible to users of all skill levels.

3. Automated Process - The oil purifier offers an automated process, including vacuum generation, distillation, condensation, and filtration, reducing manual intervention.

4. Safety Features - The vacuum dehydrator oil purifier is equipped with safety features, such as overload protection and temperature control, ensuring safe operation.

Applications

The vacuum dehydrator oil purifier for engine oil purification is suitable for various applications, including:

1. Automotive industry - Purifying engine oil in cars, trucks, motorcycles, and other vehicles.

2. Industrial machinery - Cleaning oil used in manufacturing equipment, hydraulic systems, and other industrial machines.

3. Marine engines - Maintaining the quality of oil in boats and ships, particularly those operating in harsh marine environments.

4. Power generation - Ensuring clean oil in generators and other power production equipment.

5. Agricultural machinery - Keeping oil clean in tractors, harvesters, and other farm equipment.

Benefits Offered by Vacuum Dehydrator Oil Purifier

1. Restores Oil Condition - The vacuum dehydrator oil purifier offers an efficient and cost-effective solution to restore oil to its original state, resulting in a longer lifespan for the oil. With the elimination of contaminants, the system ensures that the oil is clean, preventing wear and tear of the engine's parts.

2. Saves Money - Regular oil changes can be expensive, and the vacuum dehydrator oil purifier significantly helps in reducing engine maintenance costs. By removing contaminants and impurities, it allows the oil to last longer, requiring fewer oil changes.

3. Reduces Downtime - The majority of engine failures and significant malfunctions trigger extended downtimes, which leads to lost revenue. The vacuum dehydrator oil purifier significantly minimizes the chances of engine failures, thereby reducing the onset of costly downtimes.

4. Enhances Efficiency - Clean oil leads to a more efficient engine. The vacuum dehydrator oil purifier ensures that oil is free from water and contaminants that could hinder efficient engine operation. This translates into better fuel efficiency, increased horsepower, and overall enhanced engine performance.

5. Environmentally Friendly - The vacuum dehydrator oil purifier promotes environmental sustainability by significantly reducing the overall amount of waste oil produced. Since it allows oil to last longer, there is less oil needed for replacement and less disposed oil.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
