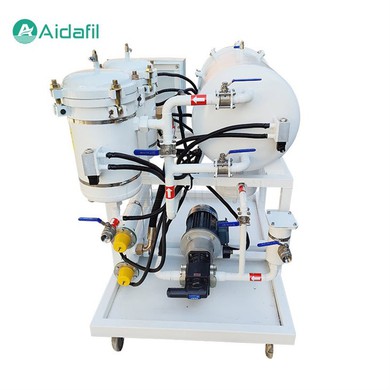

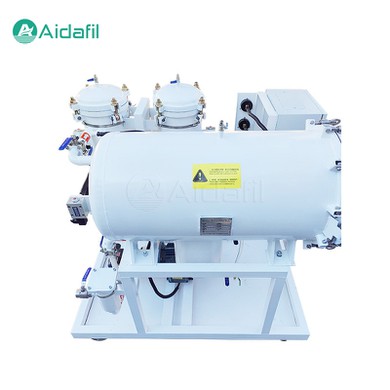

Well-Constructed Coalescence Separation Oil Filter Machine

The well-constructed coalescence separation oil filter machine is a state-of-the-art device designed specifically for the efficient separation of oil and water. This advanced machinery is equipped with two filter elements, namely the coalescing filter element and the separation filter element, which work in tandem to ensure the effective removal of impurities and water from oil.

Design and Components

The well-constructed coalescence separation oil filter machine is a robust and durable piece of equipment that is built to last. Its well-designed structure comprises a sturdy outer casing that houses the internal components, including the coalescing filter element and the separation filter element. These components are meticulously crafted to ensure optimal performance and longevity.

1. Coalescing Filter Element

The coalescing filter element plays a crucial role in the oil filtration process. It is responsible for filtering out solid impurities and gathering tiny water droplets into larger ones. This element consists of a fine mesh or porous material that allows the oil to pass through while capturing the impurities and water droplets. As the oil flows through the coalescing filter element, the impurities and water become trapped, eventually forming larger droplets that can be easily separated from the oil due to their increased size and weight.

2. Separation Filter Element

The separation filter element is the second component of the well-constructed coalescence separation oil filter machine. This element is designed with lipophilic and hydrophobic properties, which enable it to further separate any remaining water from the oil. The separation filter element works by attracting the oil molecules while repelling the water molecules, ensuring that the oil exiting the filter is clean and virtually water-free.

How the Coalescence Separation Oil Filter Machine Works

The coalescing filter element plays a crucial role in the separation process. When the oily wastewater enters the machine, it first flows through the coalescing filter element. This element filters out solid impurities, such as dirt and rust particles, from the wastewater. Additionally, the coalescing filter element gathers very small water droplets into larger ones, making them easier to separate from the oil.

After the coalescing filter element has done its job, the oily wastewater flows through the separation filter element. This element has excellent lipophilicity and hydrophobicity properties, which means it attracts oil and repels water. As a result, most of the water droplets settle into the collection tank, leaving behind clean and water-free oil.

Finally, the clean oil flows out of the coalescence separation oil purifier machine, ready for reuse or disposal.

Features

1. High-efficiency filtration. The coalescing filter element removes solid impurities from the oily wastewater, while the separation filter element separates the remaining oil droplets from the water. This results in clean and water-free oil.

2. Energy-efficient. The machine operates at low pressure, reducing energy consumption and operating costs.

3. Easy maintenance. The filter elements are easy to replace, ensuring minimal downtime during maintenance.

4. Long service life. The machine is made of high-quality materials, ensuring long service life and durability.

5. User-friendly design. The machine has an intuitive control panel, making it easy to operate and monitor.

Applications and Industries

The well-constructed coalescence separation oil filter machine finds wide-ranging applications across various industries. Some of the key sectors that can benefit from this innovative technology include:

1. Oil and gas industry. The oil and gas industry can utilize the well-constructed coalescence separation oil filter machine to separate oil from produced water, ensuring compliance with environmental regulations and reducing waste.

2. Food and beverage industry. In the food and beverage industry, the machine can be employed to filter cooking oils, edible oils, and other liquid fats, extending their useful life and improving product quality.

3. Chemical industry. The chemical industry can benefit from the well-constructed coalescence separation oil filter machine by employing it in processes that involve the separation of chemical compounds, solvents, and other oily substances.

4. Automotive industry. The machine can be used in the automotive industry for filtering engine oils, transmission fluids, and other lubricants, prolonging the life of these fluids and reducing maintenance costs.

5. Metalworking industry. In the metalworking industry, the well-constructed coalescence separation oil filter machine can be utilized to filter cutting oils and coolants, reducing the frequency of fluid replacement and minimizing waste.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
