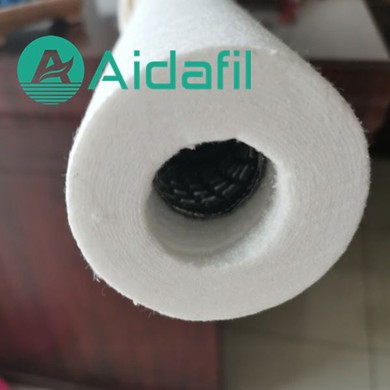

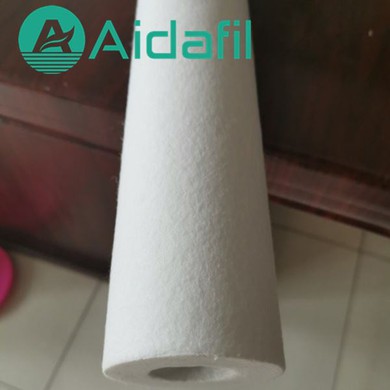

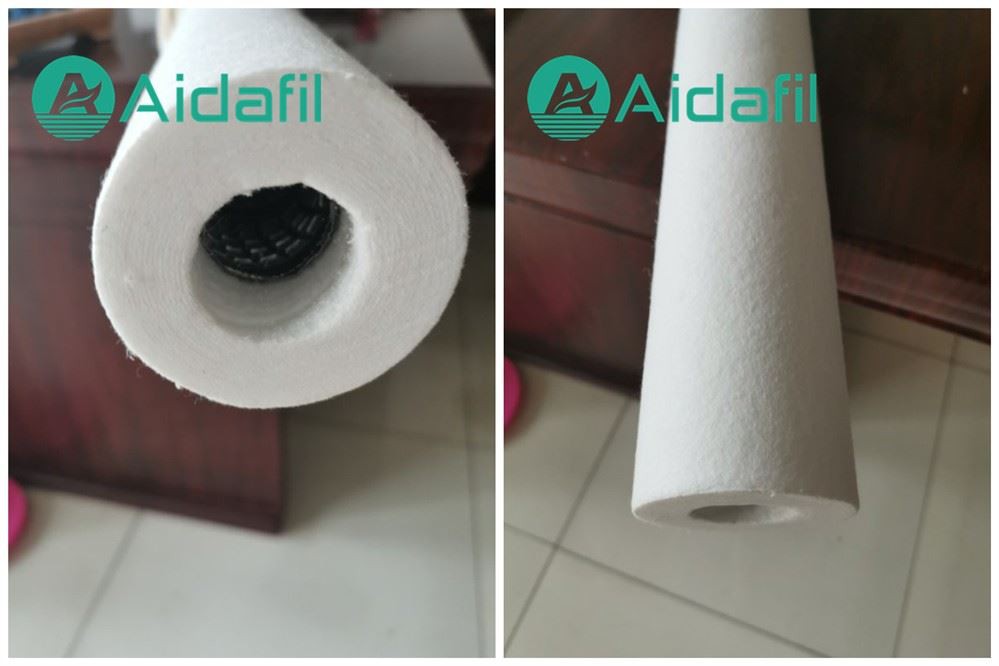

Coalescer Filter Element

Coalesce filter cartridge is made of a variety of composite materials through a special process, which has hydrophilic characteristics. It can not only filter out mechanical impurities in the medium, but also can make the emulsified water from the medium through demulsification and coalescence.

Product Details

We produce all kinds of industrial filter elements, such as hydraulic filter, compressor filter, water filter and metal filter. At the same time, we can produce replacement filter elements of famous brands such as USA, Germany and Italy. We can also customize filter elements according to actual demand. Welcome to contact us.

Coalesce Filter Cartridge

Coalesce filter cartridge is made of a variety of composite materials through a special process, which has hydrophilic characteristics.

Coalesce filter cartridge can first filter out the mechanical impurities in the medium, then obtain emulsified water from the medium by demulsification and coalescence, and finally purify the culture medium by separating and coalescing the filter element with larger water drops.

Coalescer Filter Element

Features

● High density gradient glass fiber

● High filtration precision

● Stable structure, it will not cause pollution to the environment and downstream products.

● Good compatibility with various fluids, good environmental protection

Applications

● Lubrication system of steam turbine and other equipment

● Filtration of aviation fuel

● Low viscosity hydraulic oil, lubricating oil

● Hydrocarbons

Specifications

Model number: GLY57/720

Filter media: Glass fiber

Features: High temperature resistance

Precision range: 0.1μm 0.3μm 0.5μm 1μm 3μm 5μm 10μm

Initial differential pressure: ≤0.15psig

Replace differential pressure: ﹤0.6psig

Operating temperature: 0~150℃

FAQ

1. How many people do you have in your company?

We have 10 technical men, 30 people in our office, 25 people in our factory.

2. What is your Warranty of filters?

The filters are consumable items, there is no warranty period, please kindly understand.

3. Do you supply CO and CQ ?

Sure. Available. We can make these documents for you if you need.

4. Can you checking shipping cost for us?

Yes! We have long cooperated forwarder. He can check competitive shipping cost and arrange delivery for us. By the way, he is responsible for our goods. You can be relax and dont worry.

5. Could you produce according to the samples?

A: Yes, we can produce by samples or drawing as your request. We can open new molds, but need you to bear the extra cost on new molds, when you place a bulk order. The mold fee can return back.

6. Can you design filters according to the working condition?

A: Yes. We have professional technical department and design the more suitable filters for you.

Certifications

Coalescer Filter Element
