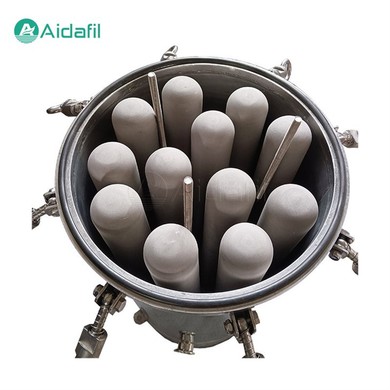

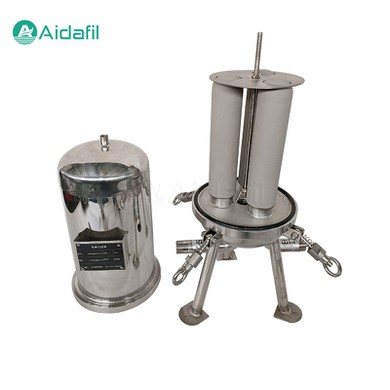

Efficient Titanium Rod Filter

The efficient titanium rod filter utilizes titanium powder sintered filter elements to remove contaminants from water and other liquids. Its unique design and high-quality materials make it ideal for use in a variety of industries, including pharmaceuticals, food and beverage production, and chemical processing.

One of the key components of the efficient titanium rod filter is its precision-engineered titanium powder sintered filter element. This element is made by compressing titanium powder into a solid form using heat and pressure. The resulting material has excellent strength, durability, and resistance to corrosion, making it ideal for use in harsh environments where other materials might fail. The filter element can also be regenerated through simple procedures such as rinsing or acid/alkaline soaking, allowing for repeated use and reducing waste.

The titanium rod filter's housing is constructed from high-grade 316l or 304 stainless steel, which further enhances its durability and resistance to corrosion. This material choice also ensures that the filter meets GMP (Good Manufacturing Practice) standards, making it suitable for use in sensitive applications where product quality and safety are paramount.

Key Parameters

Main material : 304/316L stainless steel

Filter flow : 3 ~ 100m³/h

Working pressure : 0.1 ~ 0.6Mpa

Operating temperature : -10 ~ 200°C

Filtration accuracy : 0.45 ~ 100μm

Joint of filter elements : M20,M30,222,226

Features

1. High Precision

The titanium rod filter provides high precision filtration, making it highly effective in removing impurities from water. The filter element is made of titanium powder sintered filter material, which can filter out particles as small as 0.45 microns. This makes the filter ideal for use in applications where very high filtration precision is required, such as in the pharmaceutical industry.

2. High Temperature Resistance

Titanium is a highly heat-resistant material, and the filter element of the titanium rod filter can withstand high temperatures of up to 200°C. This makes it ideal for use in applications where high-temperature water or fluids need to be filtered, such as in the chemical industry.

3. Corrosion Resistance

Titanium is highly resistant to corrosion, making it ideal for use in harsh environments. The filter element of the titanium rod filter is made of titanium powder sintered filter, which provides excellent corrosion resistance. This makes it ideal for use in applications where the filter may come into contact with corrosive substances, such as in the oil and gas industry.

4. High Mechanical Strength

The titanium rod filter has high mechanical strength, which makes it highly durable and long-lasting. The filter element of the titanium rod filter is made of titanium powder sintered filter, which provides excellent mechanical strength. This makes it ideal for use in applications where the filter may be subjected to high pressure or high flow rates, such as in the water treatment industry.

Applications

1. Water Purification

The titanium rod filter is highly effective in purifying water and removing impurities. It can remove heavy metals, radioactive substances, and high molecular compounds in water. This makes it ideal for use in applications where high-quality water is required, such as in the production of pharmaceuticals or in drinking water treatment plants.

2. Food and Beverage Industry

The titanium rod filter is widely used in the food and beverage industry to purify water and remove impurities. It can be used to filter out impurities from the water used in the production of food and beverages, ensuring that the final product is clean and safe for consumption.

3. Pharmaceutical Industry

The titanium rod filter is essential in the production of pharmaceuticals as it can filter out impurities from the water used in the production process. The high precision and high-temperature resistance of the filter make it ideal for use in the pharmaceutical industry, where very high purity water is required.

4. Chemical Industry

The titanium rod filter is used in the chemical industry to filter out impurities from water and other fluids. It can withstand high temperatures and is highly resistant to corrosion, making it ideal for use in harsh chemical environments.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
