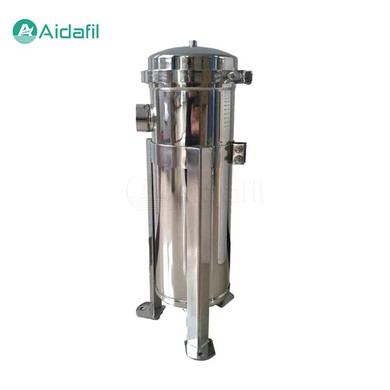

High-Efficiency Stable-Performance Security Filter

Name: High-Efficiency Stable-Performance Security Filter
Brand: AIDA
SKU: 239208822

The high-efficiency stable-performance security filter operate based on the principle of mechanical filtration, and its core component is the filter element. These filters are usually made of materials such as polypropylene (PP), and have a precise pore size, which can effectively intercept particles larger than the pore size.

Product Details

The high-efficiency stable-performance security filter operate based on the principle of mechanical filtration, and its core component is the filter element. These filters are usually made of materials such as polypropylene (PP), and have a precise pore size, which can effectively intercept particles larger than the pore size. When water flows through the filter element, impurities such as suspended solids, colloids, and microorganisms are physically trapped in the surface or internal pores of the filter material due to excessive size. In addition, certain particles are also fixed to the filter material due to electrostatic adsorption force, which further enhances the filtration efficiency.

As the guardian of the water treatment system, the high efficiency and stable performance of the security filter directly affects the efficiency and final water quality of the entire water treatment process.

Construction features

The housing of the high-efficiency stable-performance security filter is mostly made of stainless steel, which ensures the corrosion resistance and long life of the equipment. The internal filter element structure is diverse, including but not limited to filter cloth, filter screen, filter, sintered filter tube, wire wound filter element, meltblown filter element, etc. Different filter media are suitable for different filtration needs. These designs are designed to improve filtration efficiency while being easy to replace and clean.

Parameters

Filter element quantity	3-123
Material	Cylindrical shell, 304 or 316L stainless steel; Equipped with multiple filter elements
Use	Used to filter out fine substances after multi-media filtration (such as tiny quartz sand, activated carbon particles, etc.)
Filter flow	3-246m³/h

Application field

1. Drinking water and beverage industry

In drinking water and beverage production, security filters are used to remove microscopic particles that can affect taste and safety, ensuring the clarity and hygiene standards of the final product.

2. Medicine and Bioengineering

In the pharmaceutical industry, security filters have strict requirements for the preparation of injections, medicinal solutions, etc., which can effectively remove bacteria and particles and ensure the safety and stability of medicines.

3. Electronics and semiconductor manufacturing

In the electronics and semiconductor industries, the water quality requirements are extremely high, and security filters are a key part of the pretreatment of high-purity water to ensure that the water quality is pure and to avoid damage to precision circuits caused by particles.

4. Petrochemical and energy fields

In these fields, security filters are used to treat circulating cooling water, reduce scale and corrosion, improve system efficiency, and extend equipment life.

5. Laboratory and research

In laboratory applications, security filters are used to prepare high-purity experimental water to ensure the accuracy and reproducibility of experimental results.

Maintenance and filter element replacement

Regular maintenance is the key to ensuring the performance of the security filter. Maintenance work mainly includes monitoring the operating pressure difference and flow rate, and replacing the filter element in a timely manner. Generally speaking, when the water pressure difference between the inlet and outlet reaches 0.1MPa, it indicates that the filter element has been blocked by a large number of impurities and needs to be replaced in time. The replacement cycle of the filter element also depends on the water quality and the amount of treatment. Regular inspection and recording of the pressure difference changes can help predict the best replacement time.

Selection points

1. Filtration accuracy. Select the filter element with the appropriate pore size according to the actual needs to meet the water quality requirements of different application fields.

2. Flow and pressure difference. Consider the maximum flow required by the system and the acceptable pressure drop to ensure the suitability of the filter.

3. Material compatibility. Choose the appropriate filter material and shell material according to the nature of the treatment solution to avoid corrosion problems.

4. Maintainability. Choose a filter design that is easy to disassemble and maintain, making it convenient for daily operation and filter replacement.

5. Cost-effectiveness. Consider equipment procurement costs, maintenance costs, and long-term operating efficiency comprehensively, and choose cost-effective products.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
