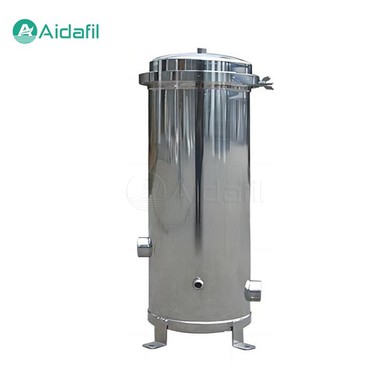

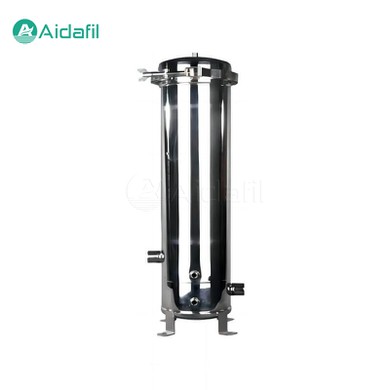

Mirror Polishing High Precision Security Filter

The mirror polishing high precision security filter is a vital component in water treatment systems. Its primary function is to further purify water that has undergone preliminary treatment, effectively removing minute particles, suspended solids, colloids, and other impurities. This safeguard measure is essential for protecting subsequent treatment equipment, such as reverse osmosis (RO) membranes, nanofiltration (NF) systems, or ultrafiltration (UF) units, from potential damage, thereby ensuring the stable operation and high-quality output of the entire water purification system.

Positioned upstream of advanced membrane treatment processes, the mirror polishing high precision security filter plays a pivotal role in the prevention of particulate matter from infiltrating and potentially harming sensitive, high-pressure pumps and intricate filtration membranes. The operational principle of the filter revolves around a filtering medium with minute pore sizes, typically ranging between 5 microns and 50 microns. Materials like polypropylene (PP) melt-blown cartridges, pleated cartridges, or other specialized media are employed to intercept minuscule contaminants while allowing clean water to pass through unobstructed.

The mirror polishing high precision security filter is widely used in pharmaceutical, food, chemical, environmental protection, water treatment and other industrial fields, especially in reverse osmosis membranes or ultrafiltration membranes, and can also be used for drinking pure water, Baijiu filtration, boiler water filtration, etc.

Key Features

1. Efficient Filtration. They excel at capturing micro-particles, suspended solids, and colloidal substances, guaranteeing the purity of the treated water.

2. Protection for Downstream Equipment. By barring larger particles from entering high-pressure pumps and intricate RO membranes, they significantly extend the lifespan and efficiency of these costly components.

3. Ease of Maintenance. Designed with replaceable filter elements, maintenance is straightforward, necessitating periodic replacement to sustain optimal performance.

4. Versatility. Suitable for a wide array of water treatment applications, including potable water treatment, industrial water processing, cooling water circulation, and more.

Parameters

Detailed Insights into Security Filters' Functionality

The essence of a security filter's effectiveness lies in its ability to act as the final barrier against contaminants before water reaches the heart of advanced purification systems. These systems, especially RO, NF, and UF, rely heavily on the integrity of their membranes to selectively permit passage of water molecules while rejecting impurities. Any physical damage or fouling of these membranes due to unfiltered particles can drastically reduce their efficiency, necessitating costly repairs or replacements and compromising water quality.

The choice of filter media is another critical aspect. PP melt-blown cartridges, for instance, offer a cost-effective solution with good particle retention capabilities. They are fabricated by melting and extruding PP fibers onto a central core, creating a matrix with a gradient density that captures particles increasingly smaller toward the center. Pleated cartridges, on the other hand, provide a larger surface area within a compact design, enhancing dirt-holding capacity and extending service intervals.

In industrial settings, where water conditions can be highly variable, the selection of filter media and the rating of the filter (i.e., the size of particles it can remove) are meticulously tailored to the specific application requirements. For instance, in pre-treatment for RO systems dealing with challenging water sources, a 5-micron filter may be used to ensure maximum protection against fouling agents.

Maintenance and Operation Guidelines

- Monitoring Pressure Differential. Regular monitoring of the pressure differential across the filter is crucial. An increase beyond a specified threshold indicates filter clogging and signals the need for a filter element replacement.

- Scheduled Filter Cartridge Replacement. Depending on the source water quality and frequency of use, establishing a routine replacement schedule is imperative to maintain filter efficacy.

- Seal Integrity During Installation and Replacement. Attention to detail during the installation or replacement of filter cartridges is vital to prevent leaks and ensure efficient filtration.

- Adherence to Design Flow Rates. It's crucial not to exceed the rated flow capacity of the filter, as overloading can compromise filtration efficiency and shorten the life of the filter cartridge.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
