Good Permeability Titanium Fiber Sintered Felt

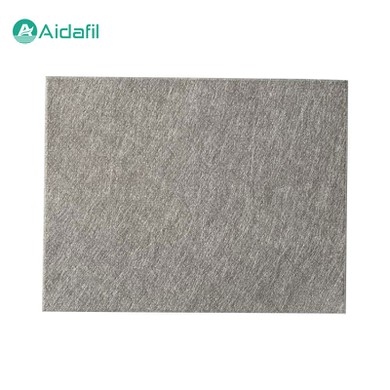

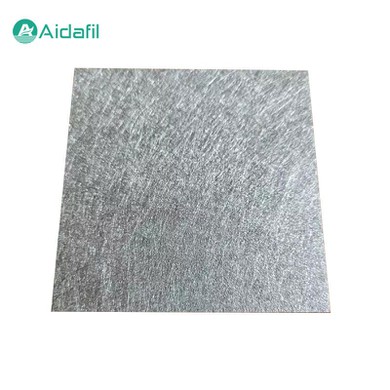

The good permeability titanium fiber sintered felt is a porous material made of titanium metal fibers through a special process. It has a wide range of applications in many fields, especially in environments with high performance requirements.

Physical properties

1. Pore structure and air permeability

A notable feature of the good permeability titanium fiber sintered felt is its highly developed pore structure. The porosity is usually between 60% and 80%, which provides ample space for the penetration of gases and liquids. Its micron-scale fiber diameter and three-dimensional network structure not only ensure good air permeability, but also ensure excellent mechanical filtration performance. This structure enables titanium fiber sintered felt to effectively intercept tiny particles while maintaining good water permeability when used as a filter medium.

2. Specific strength and high temperature resistance

The good permeability titanium fiber sintered felt has an extremely high specific strength, which means that it can withstand greater mechanical stress at a relatively light weight. This feature is particularly important in weight-sensitive applications such as portable devices and aerospace. In addition, titanium itself has excellent high temperature resistance, which enables sintered felt to work stably at temperatures up to several hundred degrees Celsius without losing structural integrity and functional performance.

Manufacturing process

1. Sintering technology

The production of the good permeability titanium fiber sintered felt mainly adopts sintering technology. First, titanium fibers with a diameter of microns are laid and stacked according to a specific pattern to create the desired thickness and shape. Subsequently, these stacked fibers need to be sintered in a high-temperature vacuum furnace. During this process, the contact points of the fibers partially melt and resolidify at high temperatures to form strong nodes, which tightly connect the fibers and give the sintered felt excellent mechanical stability and durability.

2. Customization flexibility and pore size adjustment

Since titanium fiber sintered felt is often used in specific industrial applications, it can be customized in different shapes and sizes according to application requirements. Its manufacturing flexibility is also reflected in the ability to adjust the pore size of the fiber as needed. This is particularly critical for the adjustment of filtration accuracy, and a more suitable pore structure can be designed according to specific filtration requirements.

Functionality

1. Anti-corrosion ability

As a natural anti-corrosion material, the good permeability titanium sintered felt products also show excellent chemical stability. In many highly corrosive environments, such as solutions containing strong acids and alkalis, titanium fiber sintered felt can remain stable without chemical reactions, which is particularly important for chemical processing, wastewater treatment and other fields.

2. Electronic conductivity

Although mainly used for structural or filtering functions, the good permeability titanium fiber sintered felt also shows a certain electronic conductivity. This conductivity makes it play an important role in the application of batteries and fuel cells, especially in conducting current and thermal management.

Parameters

Application areas

1. Gas diffusion layer

In proton exchange membrane fuel cells, titanium fiber sintered felt plays a key role in uniformly distributing the reaction gas and managing water and heat as a gas diffusion layer. Its porous structure ensures that the gas can diffuse evenly to the catalyst layer, while optimized water and heat management improves the efficiency and life of the fuel cell.

2. Filtration and separation technology

In addition to fuel cells, titanium fiber sintered felt is also widely used in the field of filtration and separation technology. For example, it is used to filter solid impurities in fluids in the food industry; in the pharmaceutical industry for the filtration of sterile air; and in the removal of harmful substances in wastewater treatment. Its high-precision porosity and chemical stability make it an ideal choice for these applications.
