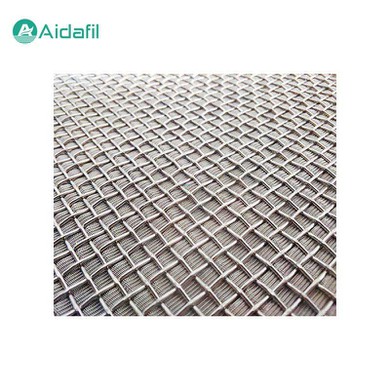

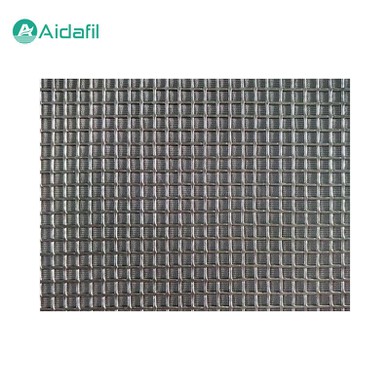

Low Resistance Large Flow Sintered Wire Mesh

The low resistance large flow sintered wire mesh is a porous filter material made of high-opening area metal meshes as the support layer and the filter layer superimposed by a specific process. It has the characteristics of high air permeability, low resistance and large flow.

It is formed with a structure with high mechanical strength and overall rigidity through a special manufacturing process, combined with multiple layers of metal braided wire mesh. This sintered mesh not only performs well in filtration efficiency, but also realizes a large flow rate filtration ability while maintaining low resistance.

Structure and manufacturing process

The low resistance large flow sintered wire mesh is made of multi-layer metal woven wire mesh through special lamination pressing and vacuum sintering processes. These wire meshes are usually made of stainless steel or other corrosion-resistant metals, and the mesh holes of each layer of wire mesh are staggered to form a uniform and ideal filtration structure.

In the manufacturing process, multiple layers of wire mesh are stacked in a certain order, and then the layers are tightly bonded together by high-temperature sintering. The sintering process is usually carried out in a vacuum environment to ensure good bonding between the metal layers while avoiding oxidation and other possible contamination.

Features

1. Low resistance

Due to the high porosity of the sintered mesh, the resistance of the fluid to pass through is small, which is especially important for situations where a large amount of fluid is required to pass through.

2. Large flow

The pore structure of the sintered mesh allows a large amount of fluid to pass through, improving filtration efficiency and making it suitable for applications that require rapid processing of large amounts of fluid.

3. High mechanical strength

The structure of the multi-layer metal woven wire mesh makes the sintered mesh have high mechanical strength and compressive strength, capable of withstanding greater pressure and impact forces.

4. High temperature resistance

The sintered wire mesh can be used in high temperature environments, and its temperature resistance depends on the metal material used. It can usually operate in the temperature range of -200 °C to 600 °C.

5. Corrosion resistance

Sintered wire mesh made of corrosion-resistant materials such as stainless steel has good corrosion resistance and is suitable for corrosive environments such as chemical and petroleum.

6. Filtration accuracy

The filtration accuracy of the sintered wire mesh can be achieved by adjusting the number of layers and aperture of the mesh to meet different filtration requirements.

7. Easy to process

The sintered wire mesh has good machinability and can be shaped by cutting, bending, etc., to adapt to different installation and use requirements.

Application field

The low resistance large flow sintered wire meshes are widely used in the following fields:

1. Petrochemical

Used to filter corrosive liquids and gases at high temperatures and pressures.

2. Food and beverages

Used to filter liquid foods such as cooking oil, fruit juice, beer, etc.

3. Medical hygiene

Used to filter biological fluids such as medicine and blood.

4. Water treatment

Used to filter wastewater, drinking water, etc., to remove suspended solids and microorganisms.

5. Electronics industry

Used to filter electronic chemicals, such as etching solutions, electroplating solutions, etc.

6. Automotive industry

Used to filter engine oil, brake fluid, etc.

Parameters
