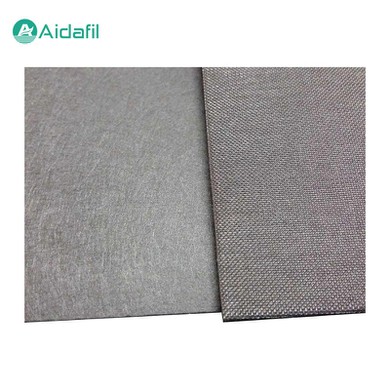

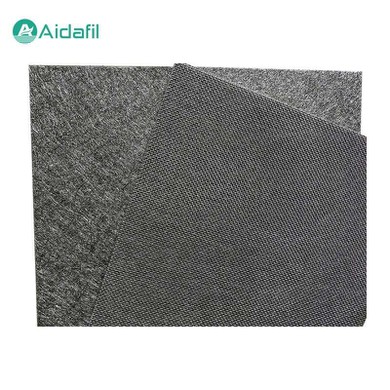

Single-Sided Protecting Mesh Metal Fiber Sintered Felt

The single-sided protecting mesh metal fiber sintered felt is a kind of filter material made of extremely fine metal fibers through non-woven laying, and then stacked and sintered at high temperature. It adds a layer of stainless steel wire mesh on one side on the basis of ordinary sintered felt and is sintered at high temperature.

Features

The main features of the single-sided protecting mesh metal fiber sintered felt include:

- High filtration accuracy. It can effectively filter out tiny impurities and particles.

- Large pollution holding capacity. It has a large pollution holding capacity, which can hold more pollutants and prolong the service life.

- High temperature and corrosion resistance. It can be used for a long time in high temperature and corrosive environments.

- High strength. After adding the protective net, it improves the compression resistance and mechanical strength of the sintered felt.

- Large flow rate. It has high porosity and excellent penetration rate, which can ensure the passage of fluid.

- Cleanability. It can be cleaned or backcleaned, reused, and reduce the cost of use.

Parameters

Application field

The application field of single-sided protecting mesh metal fiber sintered felt is very wide, mainly including the following aspects:

- Chemical industry. Used to filter impurities in chemical liquids, such as polymer melts, high-temperature gases, vapors, high-temperature liquids, etc.

- Petroleum industry. Used for filtration and purification of petroleum, such as crude oil, refined oil, natural gas, etc.

- Pharmaceutical industry. Filter impurities in pharmaceutical liquids to ensure the quality and safety of medicines.

- Food industry. Used for filtration of food and beverages, such as beer, wine, juice, milk, etc.

- Automotive industry. Used for automotive exhaust treatment, fuel filtration, etc.

- Electronics industry. Used for filtration of electronic chemicals, such as photoresist, developer, etc.

When selecting single-sided protecting mesh metal fiber sintered felt, the following factors need to be considered:

- Filtration accuracy. Choose the appropriate filtration accuracy according to the size of the impurity particles to be filtered.

- Flow requirements. According to the flow requirements of the system, choose the appropriate porosity and penetration rate.

- Operating temperature and pressure. Choose the appropriate materials and specifications according to the temperature and pressure of the working environment.

- Corrosion resistance. According to the corrosiveness of the filter medium, choose the appropriate corrosion-resistant material.

- Strength requirements. According to the pressure and flow rate of the system, choose the appropriate strength and compression resistance.

The influence of pore size of the stainless steel wire mesh layer

The pore size of the stainless steel wire mesh layer of the sintered felt will significantly affect its filtration effect.

When the aperture of the stainless steel wire mesh layer is small:

- It can more effectively intercept tiny particles and impurities, improve filtration accuracy, and ensure that the filtered fluid is more pure.

- However, it may cause an increase in the resistance of the fluid to pass through, thus affecting the flow rate.

When the aperture is large:

- Fluid will pass through relatively smoothly, with a higher flow rate.

- However, the ability to intercept smaller particles of impurities may be weakened, and the filtration effect may be compromised.

Therefore, it is necessary to choose the pore size of the stainless steel wire mesh layer according to the specific filtration requirements and application scenarios to achieve the best filtration effect and flow balance.
