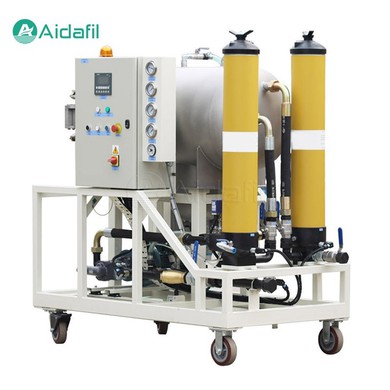

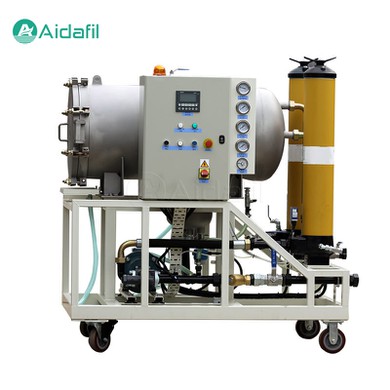

Transformer Oil Coalescing Dewatering Oil Filtration Machine

Transformer oil is a critical component in the operation of transformers, as it functions as both an insulator and a coolant. Without proper maintenance and filtration, the oil can become contaminated with dirt, water, and other impurities, which can severely impact its performance. A transformer oil coalescing dewatering oil filtration machine is the perfect solution to this problem, as it effectively removes these contaminants and restores the oil to its optimal working condition.

The transformer oil coalescing dewatering oil filtration machine seeks to remove impurities from transformer oil, thereby extending its lifespan and enhancing transformer performance. It integrates two functions of precision filtration and efficient dehydration. The machine adopts advanced "coalescing separation" technology for dehydration, high in dehydration efficiency and strong in dehydration capacity, especially suitable for the separation of a large amount of water in the oil.

In the coalescing process, a set of coalescing filter elements compose the coalescing system. The coalescing filter element adopts hydrophilic materials. After passing through the filter element, the free water and emulsified water in the oil are coalesced into larger water droplets and then settled into the water storage tank under the force of gravity.

In the separation process, the separation filter element of the separation system is made of special hydrophobic materials. When the oil passes through the filter element, the water droplets are blocked on the outer surface of the filter element and coalesce with each other until they settle into the water storage tank due to the action of gravity.

Product Parameters

Rated pressure (MPa) : 0.6

Initial pressure loss (Mpa) : ≤0.1

Coarse filtration (μm) : 100

Pressure differentials (Mpa) : 0.2

Working temperature (°C) : 25-80

Recommended viscosity (cSt) : 10-120

Voltage : AC 380V Three-Phase 50Hz

Features

1. Coalescing and Dewatering Technology

The transformer oil coalescing dewatering oil filtration machine uses coalescing and dewatering technology to remove water, gas, and impurities from the transformer oil. Firstly, the coalescing technology separates water droplets and oil molecules, minimizing water content in the process. Secondly, dewatering technology removes the dissolved water in the oil, leaving the oil with a very low water content.

2. Large Filtration Surface Area

The machine has a large filtration surface area, which enhances the filtration rate of contaminants and impurities in the oil.

3. Automatic Control System

The transformer oil coalescing dewatering oil filtration machine employs an automatic control system that ensures the machine runs smoothly, detects and alerts the user of any malfunction or issues, and automatically switches off the machine if necessary.

4. High-quality Filtration Material

The machine features a high-quality filtration material that is resistant to high temperatures and harmful chemicals, making it suitable for filtering transformer oil contaminated with particles, moisture, and acidic compounds.

Benefits

Using a transformer oil coalescing dewatering oil filtration machine offers several benefits, including:

1. Improved transformer performance. Clean oil provides better insulation and cooling, enhancing transformer efficiency and lifespan.

2. Reduced maintenance costs. Regular oil filtration reduces the need for costly transformer repairs and replacements.

3. Extended oil life. Filtration removes contaminants that can degrade the oil over time, extending its service life.

4. Environmental protection. Used oil can be safely disposed of or recycled, reducing environmental impact.

Applications

The transformer oil coalescing dewatering oil filtration machine is used in a variety of applications, including:

1. Transformer maintenance. Removing moisture, particles, and other impurities from transformer oil.

2. Oil regeneration. Restoring contaminated transformer oil to its original condition.

3. Oil conditioning. Maintaining the quality of transformer oil by removing impurities and preventing the formation of sludge.

Selection and Sizing

When selecting a transformer oil coalescing dewatering oil filtration machine, it is important to consider the following factors:

1. Oil flow rate. The machine should be able to handle the desired oil flow rate.

2. Oil contamination level. The machine should be sized to remove the specific contaminants present in the oil.

3. Desired oil quality. The machine should be able to achieve the desired level of oil cleanliness.

Operation and Maintenance

Transformer oil coalescing dewatering oil filtration machines are relatively easy to operate and maintain. Regular maintenance includes:

1. Changing the pre-filter. As needed, based on the level of contamination in the oil.

2. Cleaning or replacing the coalescing elements. As per the manufacturer's recommendations.

3. Monitoring the vacuum and oil flow rate. To ensure optimal performance.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
