Good Quality Six-Layer Sintered Wire Mesh

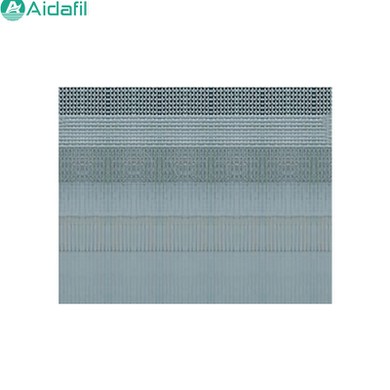

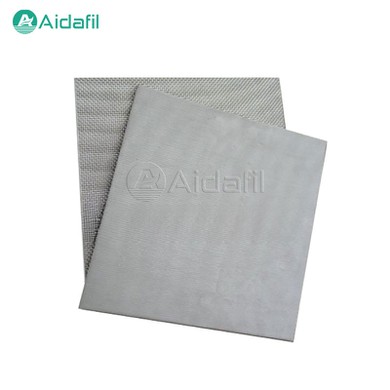

The good quality six-layer sintered wire mesh is made by adding a layer of 12-mesh mesh on the basis of five-layer sintered wire mesh, with a thickness of 3.5mm and better pressure resistance. This structure makes the six-layer sintered wire mesh have extremely high mechanical strength and overall rigidity, while maintaining the characteristics of uniform mesh and stable filtration accuracy.

Features

1. High strength and rigidity

Due to the multi-layer structure design of the good quality six-layer sintered wire mesh, especially the fourth and fifth layers as the support layer and the sixth layer as the reinforcement layer, it has extremely high mechanical strength and compressive strength. This structure not only ensures the stability of the sintered wire mesh, but also makes it easy to use during processing, welding and assembly.

2. Uniform filtration accuracy

The good quality six-layer sintered wire mesh can provide uniform filtration performance in the range of 1-200 μm. This means that no matter what particle size of material is filtered, it can maintain a consistent filtration effect. At the same time, its mesh properties remain stable during use and will not change due to extended use time.

3. High temperature and corrosion resistance

The good quality six-layer sintered wire mesh can withstand high temperatures up to 480 °C, and even briefly withstand high temperatures of 600 °C. In addition, it also has good acid and alkali resistance, and can work in corrosive environments such as acid and alkali, making it very suitable for harsh working environments.

4. Excellent cleanliness

Due to the use of surface filtration, the good quality six-layer sintered wire mesh performs well in counter-current cleaning, is easy to clean and can be reused, thus extending the service life.

Parameters

Application

1. Medicine and Biotechnology

In the pharmaceutical industry, the six-layer sintered wire mesh is widely used in three-in-one pharmaceutical filter plates for filtering, washing and drying. Its high precision and corrosion resistance make it an ideal choice for the preparation and purification of drugs. In addition, it is also used for filtering human and animal medicines to ensure the purity and safety of drugs.

2. High temperature and dispersed cooling applications

Due to its excellent high temperature resistance, the six-layer sintered wire mesh is used as a dispersed cooling material in extremely high temperature environments. In industries such as steel, it is also used as a fluidized bed orifice material and a fluidization and conveying system for blast furnace coal powder injection.

3. Chemical and chemical fiber industry

In the chemical and chemical fiber industry, the six-layer sintered wire mesh is used for filtering polyester, oil products, and chemical products. Its high precision and corrosion resistance ensure the smooth progress of the production process and the stability of product quality.

4. Water treatment and gas filtration

Due to its excellent filtration performance, the six-layer sintered wire mesh is also widely used in the fields of water treatment and gas filtration, effectively removing impurities in water and particulate matter in gas.

Impact of filtration accuracy on filtration effect

The filtration accuracy of the good quality six-layer sintered wire mesh has a significant impact on the filtration effect, which is mainly reflected in the following aspects:

1. Particle removal efficiency

The filtration accuracy of six-layer sintered wire mesh usually ranges from 1μm to 200μm. Higher filtration accuracy means that it can capture and remove smaller particles.

Using a higher-precision six-layer sintered wire mesh can improve the particle removal efficiency during the filtration process, which is very important for applications that require highly pure fluids or gases.

2. Balance between filtration effect and flow rate

The finer the filtration accuracy, the better the filtration effect, but the flow rate may be reduced accordingly.

On the contrary, sintered wire mesh with coarser filtration accuracy may have a larger flow rate, but the filtration effect may be slightly inferior.

3. Product quality assurance

In industries such as pharmaceuticals, food and beverage production, product quality and safety are critical. Six-layer sintered wire mesh with appropriate accuracy helps prevent microorganisms, solid particles and other contaminants from entering the product, ensuring the quality of the final product.
