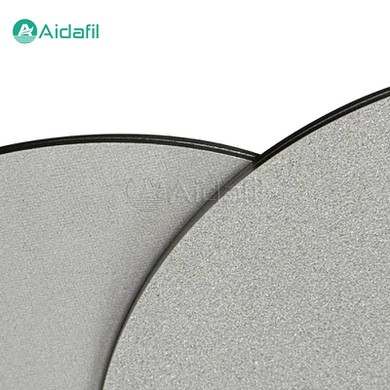

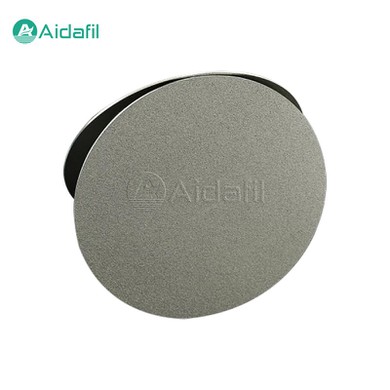

Great Strength Sintered Stainless Steel Powder Filter Material
Product Details
The great strength sintered stainless steel powder filter material is a micro-filtration material made by sieving and molding stainless steel powder and then sintering it at high temperature. This filter material is characterized by high filtration accuracy, good air permeability, high mechanical strength, high material utilization rate and heat shock resistance.
Choosing the right sintered stainless steel powder filter material requires considering multiple factors such as filtration accuracy, operating temperature and pressure, corrosion resistance, fluid compatibility, and cost-effectiveness. The right choice can ensure the filtration effect while ensuring the stable operation and long life of the equipment.
Characteristics
The great strength sintered stainless steel powder filter material has the following characteristics:
1. High filtration accuracy
The sintered stainless steel powder filter material can achieve very high filtration accuracy and can effectively intercept fine particulate matter. This makes it widely used in occasions that require precision filtration, such as hydraulic systems, lubrication systems and pharmaceutical industries.
2. Good air permeability
Despite the high density and high filtration accuracy of sintered stainless steel powder filter material, it still maintains good air permeability. This means that the fluid can pass through the filter material smoothly without excessive pressure drop.
3. Excellent mechanical strength
The sintering process forms a strong bond between the stainless steel powders, resulting in a high-strength filter material. This material can withstand high working pressures and also has good impact resistance and wear resistance.
4. Corrosion resistance
Due to the use of stainless steel as raw material, the sintered stainless steel powder filter material has good corrosion resistance. It can resist the erosion of a variety of acids, alkalis and other corrosive substances, thereby maintaining stable performance in harsh environments.
5. Easy to clean and regenerate
The sintered stainless steel powder filter material can be cleaned and regenerated by various methods, which greatly extends its service life. Through proper cleaning, the filter material can be restored to its original state, thereby reducing the cost of replacement.
Parameters
|
Value of particles blocked in liquid |
Permeability (no less than) |
|||
|
Filtration efficiency (98%) |
Filtration efficiency (99.9%) |
Permeability (10-12m2) |
Relative permeability |
MPa |
|
1 |
3 |
0.05 |
5 |
3 |
|
3 |
5 |
0.18 |
18 |
3 |
|
5 |
9 |
0.45 |
45 |
3 |
|
10 |
15 |
0.9 |
90 |
3 |
|
15 |
24 |
2 |
200 |
3 |
|
25 |
35 |
4 |
400 |
3 |
|
30 |
40 |
5.83 |
580 |
2.5 |
|
50 |
80 |
7.5 |
750 |
2.5 |
|
80 |
120 |
12 |
1200 |
2.5 |
Application areas of sintered stainless steel powder filter material
1. Automobile industry
In automobile manufacturing, the sintered stainless steel powder filter material is used in engine oil filters, brake systems and coolant filtration to ensure the safety and efficiency of vehicle operation.
2. Chemical industry
In chemical production, the sintered stainless steel powder filter material is used to separate and purify chemicals to ensure the quality and safety of products. At the same time, it is also used for the recovery and utilization of catalysts.
3. Food and beverage industry
In the production process of food and beverages, the cleanliness requirements are very high. The sintered stainless steel powder filter material is used to filter water, wine, juice and other products to ensure the hygiene and safety of the products.
4. Pharmaceutical industry
In the pharmaceutical field, sintered stainless steel powder filter materials are used for the purification of drugs and the preparation of preparations. Their high-precision filtering effect meets the strict requirements of pharmaceutical production.
Advantages
1. High filtration accuracy. It can effectively filter out fine particles and provide efficient filtration effect.
2. Good air permeability. It allows fluid to pass smoothly while intercepting solid particles.
3. High mechanical strength. The sintered material has high strength and can withstand certain pressure and mechanical shock.
4. High material utilization rate. Stainless steel powder sintering technology can make full use of raw materials and reduce production costs.
5. Heat shock resistance. It is suitable for higher working temperatures and has good heat resistance.
