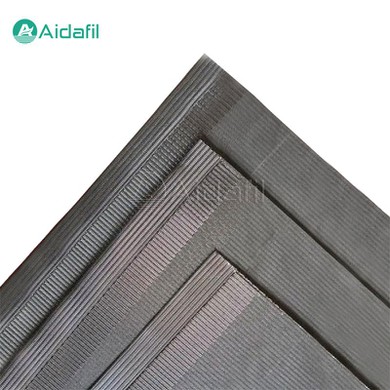

Standard Structure Five Layer Sintered Mesh
Product Details

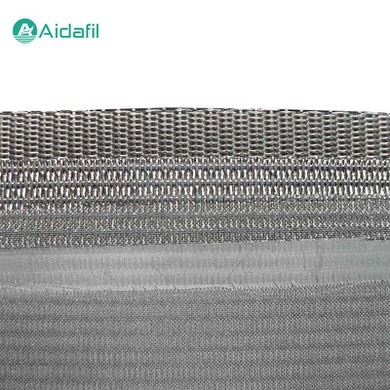

The standard structure five layer sintered mesh is a filter material made of five layers of stainless steel wire mesh through superposition and vacuum sintering. It is generally divided into four parts: protective layer, filter layer, separation layer and support layer. It has uniform and stable filtering accuracy and high strength and rigidity, and is suitable for occasions with high requirements for compressive strength and uniform filtering particle size.
The standard structure five layer sintered mesh is easy to form, process and weld, and can be made into various forms of filter elements such as round and cylindrical.
Main characteristics
The main characteristics of the standard structure five layer sintered mesh include:
1. High strength and good rigidity
It has high mechanical strength and compressive strength, good processing, welding and assembly performance, and is easy to use;
2. Uniform and stable accuracy
It can achieve uniform and consistent filtering performance for all filtering accuracies, and the mesh does not change during use;
3. Wide range of use environments
It can be used for filtering in temperature environments from -200℃ to 600℃ and acid-base environments;
4. Excellent cleanability
It has good backflow cleaning effect, can be used repeatedly, and has a long service life.
Parameters
|
Model number |
Nominal precision (μm) |
Absolute precision (μm) |
Gases permeability (L/min · dm2 · kPa) |
Bubbling pressure (pa) |
|
ADBSW1 |
1 |
6-7 |
180 |
5300-6000 |
|
ADBSW2 |
2 |
8-9 |
240 |
4300-5000 |
|
ADBSW5 |
5 |
11-13 |
260 |
3000-3700 |
|
ADBSW10 |
10 |
16-18 |
310 |
2700-3300 |
|
ADBSW15 |
15 |
24-26 |
350 |
2000-2600 |
|
ADBSW20 |
20 |
28-32 |
450 |
1800-2300 |
|
ADBSW25 |
25 |
34-36 |
620 |
1400-1900 |
|
ADBSW30 |
30 |
40-45 |
690 |
1200-1700 |
|
ADBSW40 |
40 |
50-55 |
720 |
1000-1500 |
|
ADBSW50 |
50 |
71-80 |
850 |
900-1200 |
|
ADBSW70 |
70 |
89-95 |
900 |
700-1100 |
|
ADBSW100 |
100 |
110-120 |
1080 |
650-1000 |
|
ADBSW150 |
150 |
180-200 |
2600 |
550-800 |
|
ADBSW200 |
200 |
260-280 |
2800 |
450-600 |
Application
The standard structure five layer sintered mesh has the characteristics of strong corrosion resistance, good permeability, high strength, easy cleaning and backwashing, precise filtering accuracy, hygienic and clean filter material, and no shedding of the wire mesh. The main application areas include:
1. Chemical industry: used to filter chemical liquids and gases, such as polymer melts, high-temperature corrosive liquids, etc.
2. Petrochemical industry: used to filter various high-temperature and corrosive liquids, etc.
3. Pharmaceutical industry: used to filter materials in the pharmaceutical process.
4. Food and beverage industry: used to filter impurities in food and beverages.
5. Water treatment industry: used for sewage treatment, seawater desalination, etc.
6. Chemical fiber industry: used to filter impurities in chemical fiber products.
7. High-temperature air filtration: can be used for filtering high-temperature air.
How to judge the quality of five layer sintered mesh
The quality of the standard structure five layer sintered mesh can be judged from the following aspects:
- Material
High-quality standard five layer sintered mesh usually uses high-quality stainless steel material with good corrosion resistance and wear resistance.
- Structure
A good sintered mesh has a uniform structure, consistent mesh size, and no obvious defects or damage.
- Air permeability
The quality of the sintered mesh can be judged by testing its air permeability. Sintered mesh with good air permeability can ensure the normal passage of fluid and effectively filter impurities.
- Accuracy
The filtration accuracy of the standard structure five layer sintered mesh should meet the requirements and can effectively filter out the target particles.
- Strength
A good quality sintered mesh should have high strength and pressure resistance, and is not easy to deform or damage during use.
- Cleanliness
A high-quality sintered mesh should be easy to clean, not easy to clog, and can maintain good filtration performance for a long time.
- Appearance
Check the appearance of the sintered mesh, the surface should be smooth and flat, without obvious scratches or flaws.
