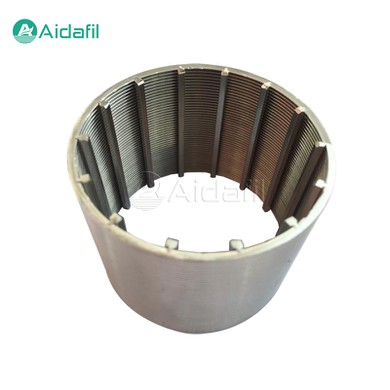

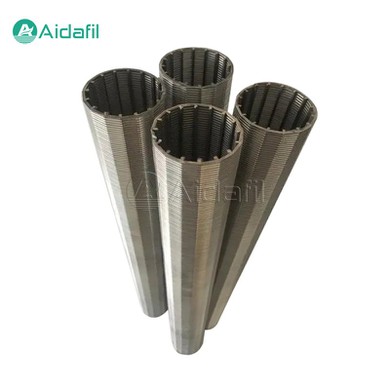

Stainless Steel Wedge Wire Screen Filter Tube

The stainless steel wedge wire screen filter tube usually consists of two parts: support frame and wedge wire filter screen.

The support frame is made of stainless steel. Its function is to provide support and strength for the filter screen to ensure that the filter tube can withstand the pressure and impact of the fluid during use. The structural design of the support frame will affect the overall strength and stability of the filter tube.

The wedge wire filter screen is the core part of the stainless steel wedge wire screen filter tube, which is welded by a series of wedge-shaped steel wires arranged according to a specific rule. The wedge wire has a unique shape, and its cross-section is a trapezoid with narrow upper and wide lower parts. This shape makes the filter screen have better filtering performance and self-cleaning ability. The size of the gap between the wedge wires can be precisely adjusted according to different filtering requirements, so as to achieve effective filtration of particles of different particle sizes.

Characteristics

1. High filtration accuracy

The stainless steel wedge wire screen filter tube can achieve high-precision filtration, and its filtration accuracy can reach the micron level, which can effectively remove tiny particles and suspended matter in the fluid and ensure the quality of the filtered fluid.

2. High strength and good stability

Due to the use of high-quality materials and reasonable structural design, the stainless steel wedge wire screen filter tube has high mechanical strength and stability, can operate stably for a long time in harsh working environments, and is not easy to deform and damage.

3. Strong self-cleaning ability

The special shape of the wedge wire makes the filter tube have good self-cleaning ability during the filtration process, which can reduce the accumulation and blockage of the filter cake and extend the service life of the filter tube.

4. Corrosion resistance and wear resistance

The selection of corrosion-resistant and wear-resistant materials enables it to adapt to various corrosive and abrasive fluid environments and is widely used in chemical, petroleum, mining and other fields.

5. Easy installation and maintenance

The stainless steel wedge wire screen filter tube usually adopts a modular design, which is easy and quick to install and disassemble, and easy to maintain and replace.

Working principle

The filtering principle of the stainless steel wedge wire screen filter tube is mainly based on physical interception and surface adsorption. When the fluid containing impurities passes through the filter tube, the larger particles of impurities will be directly intercepted by the wedge wire filter on the surface of the filter to form a filter cake; the smaller particles of impurities will be adsorbed and retained in the pores inside the filter. As the filtration process proceeds, the filter cake will gradually thicken, resulting in increased filtration resistance. At this time, it is necessary to remove the filter cake by backwashing and other methods to restore the filtration performance of the filter tube.

During the backwashing process, due to the special structure of the wedge wire filter, the water flow can quickly disperse and take away the filter cake, and effectively clean the filter at the same time, thereby ensuring the long-term stable operation of the filter tube.

Parameters

Application fields

1. Water treatment field

It is widely used in sewage treatment, drinking water purification, industrial water treatment, etc. It can remove impurities such as suspended matter, silt, organic matter, bacteria, etc. in water to improve water quality.

2. Petrochemical industry

Used for oil well filtration and oil-water separation in the process of oil extraction, as well as liquid filtration and catalyst recovery in chemical production.

3. Mining industry

In the process of mineral processing and tailings treatment, it is used to filter solid particles in the slurry to achieve resource recovery and utilization.

4. Food and beverage industry

It can be used for liquid filtration, juice clarification, beer filtration, etc. in food processing to ensure food quality and safety.

5. Pharmaceutical industry

In pharmaceutical production, it is used for filtration and sterilization of drug liquid to ensure the purity and quality of drugs.
