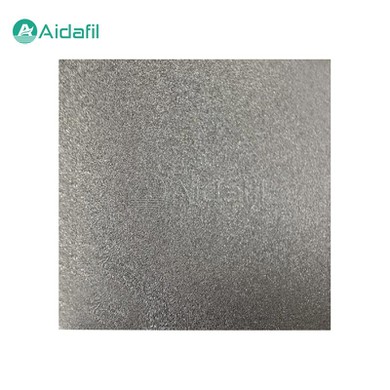

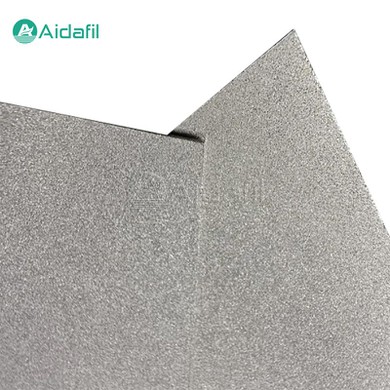

Top-Performance Titanium Powder Sintered Filter Plate

The top-performance titanium powder sintered filter plate is a high-performance filter material made of pure titanium powder through a precision sintering process. It combines the excellent corrosion resistance, high stability, high strength and good filtering characteristics of titanium materials, and is widely used in fluid filtration and separation processes in various industrial fields.

Characteristics

1. Corrosion resistance

Titanium is a highly corrosion-resistant metal with excellent corrosion resistance in many acidic, alkaline and salt solutions. This makes titanium powder sintered filter plates particularly suitable for handling highly corrosive chemicals.

2. Strength and stability

After sintering, titanium powder forms a solid whole with high mechanical strength and stability. Even under high pressure and high temperature environments, it can maintain its structural integrity and filtering effect.

3. Filtration efficiency

The titanium powder sintered filter plate has a high porosity and uniform distribution, which can effectively intercept suspended particles and impurities and achieve efficient filtering effects.

4. Renewability

After proper cleaning and regeneration, titanium powder sintered filter plates can be reused, reducing operating costs.

Application areas

The application areas of the top-performance titanium powder sintered filter plate include but are not limited to:

1. Chemical industry

In the chemical industry, titanium powder sintered filter plates are used to filter various corrosive chemicals, such as acids, alkalis and organic solvents.

2. Pharmaceutical field

In the pharmaceutical process, the filter material is required to have high cleanliness and biocompatibility, and titanium powder sintered filter plates can meet these strict requirements.

3. Food and beverage industry

Food and beverage production has high requirements for the safety and hygiene of filter materials. Titanium powder sintered filter plates meet relevant food safety standards and can be used for filtering products such as wine and juice.

4. Water treatment

In urban water supply, sewage treatment and other fields, titanium powder sintered filter plates can be used to remove suspended matter, microorganisms and other harmful substances in water.

5. Petrochemical

In petroleum refining and chemical production, titanium powder sintered filter plates are used to filter impurities in oil and chemical products.

Parameters

Manufacturing process

- Preparation of titanium powder

The purity of titanium powder directly affects the quality of the final product. High-purity titanium powder is obtained by vapor deposition, electrolysis and other methods.

- Pretreatment of powder

The titanium powder is pretreated by screening, mixing and other methods to achieve a uniform particle size distribution.

- Molding

The titanium powder is molded into a filter plate of the desired shape by pressing or injection molding.

- Sintering

The molded titanium powder is sintered at high temperature to make metallurgical bonding between the powders to form a dense porous structure.

- Post-treatment

After sintering, post-treatment processes such as surface treatment and machining may be required to improve surface finish and dimensional accuracy.

Factors affecting service life

1. Corrosiveness of the working medium

If the fluid handled by the titanium powder sintered filter plate is highly corrosive, it may accelerate the corrosion process of the filter plate, thereby shortening its service life.

2. Operating pressure

If the actual working pressure exceeds the design pressure of the filter plate, it may cause the filter plate to break or wear prematurely.

3. Type and concentration of filtered substances

Different filtered substances and concentrations may cause different degrees of blockage and wear on the filter plate.

4. Cleaning and maintenance frequency

Regular cleaning and maintenance can extend the service life of the filter plate. If these operations are not performed regularly, the filter plate may fail prematurely.

5. Installation and use methods

Improper installation or use methods may also affect the service life of the filter plate.
