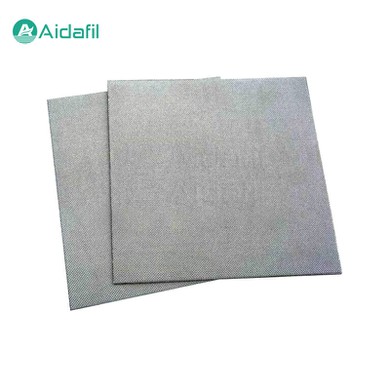

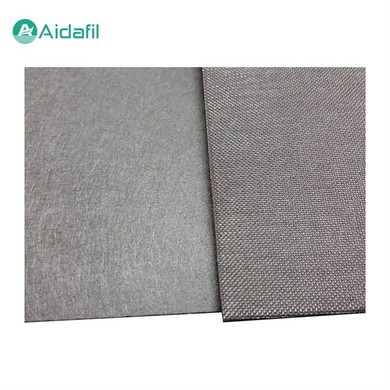

Sintered Metal Fiber Felt With One-Side Protective Mesh

The sintered metal fiber felt with one-side protective mesh is made of extremely fine metal fibers through non-woven laying, and then stacked and sintered at high temperature. The characteristic of this sintered felt is that after the ordinary sintered felt is laid, a stainless steel wire mesh is laid on one side, and then sintered at high temperature. As a high-performance filter material, the sintered metal fiber felt with one-side protective mesh combines the excellent properties of metal fiber sintered felt with the additional protection of a single-layer mesh.

Structural characteristics

The structural design of the Sintered Metal Fiber Felt With One-Side Protective Mesh gives it unique properties. The multi-layer metal fiber felt forms a pore gradient with different pore size layers, which means that it can achieve extremely high filtration accuracy. Larger particles are intercepted by the outer layer, while smaller particles are captured by the inner layer. This gradient filtration effect greatly improves the filtration efficiency. In addition, the addition of a single-layer protective mesh not only enhances the overall strength of the material, but also provides better shape stability, preventing deformation under high temperature or high pressure environments.

Performance advantages

1. High and stable filtration accuracy

The Sintered Metal Fiber Felt With One-Side Protective Mesh has high filtration accuracy and can effectively intercept micron-level particles, which is critical for many industrial applications. For example, in the chemical industry, high-precision filtration can prevent the loss of catalysts or other key substances. Due to the structural stability of the sintered felt, its filtration accuracy remains stable during use and will not change significantly due to temperature changes or pressure fluctuations.

2. Large dirt holding capacity

Due to its porous structure and gradient pore size design, the Sintered Metal Fiber Felt With One-Side Protective Mesh can accommodate a large amount of pollutants. This means that it can continue to work longer before the filter material is replaced, reducing maintenance costs and downtime.

3. High temperature and corrosion resistance

The Sintered Metal Fiber Felt With One-Side Protective Mesh can work under extreme temperature conditions, including high temperature environments, which makes it very suitable for use in heat treatment furnaces, chemical reactors and other high-temperature equipment. At the same time, its corrosion resistance also enables it to be used for a long time in acids, alkalis and organic solvents without being damaged by chemical corrosion.

4. Large flow rate

Due to its high porosity and optimized pore size distribution, the Sintered Metal Fiber Felt With One-Side Protective Mesh can provide a large flow rate and reduce the resistance of fluid passing through, which is very beneficial for improving production efficiency and reducing energy consumption.

5. Strong toughness and good plasticity

The Sintered Metal Fiber Felt With One-Side Protective Mesh has good toughness and plasticity, and can maintain its integrity even under complex stress conditions. This allows it to be used in filters of various shapes and sizes to meet different industrial needs.

6. Washable or backwashable

An important advantage is that the Sintered Metal Fiber Felt With One-Side Protective Mesh can restore its filtration performance by washing or backwashing. This regeneration ability not only extends the service life of the filter material, but also helps to reduce waste generation, in line with the requirements of sustainable development.

Parameters

Application field

The Sintered Metal Fiber Felt With One-Side Protective Mesh is widely used in many industrial fields due to its excellent performance characteristics. Here are some major application examples:

1. Chemical industry

In chemical production, it is used to filter chemicals, catalysts and reaction media to ensure product quality and production safety.

2. Pharmaceutical industry

In the pharmaceutical process, it is used to purify gases and liquids to remove harmful microorganisms and other pollutants to ensure the purity of medicines.

3. Environmental protection field

In waste gas treatment and water treatment systems, it is used to capture harmful substances such as heavy metal ions and organic pollutants to reduce environmental pollution.

4. Energy industry

In oil and gas extraction, it is used to separate and purify fluids to improve the efficiency and safety of energy extraction.

5. Aerospace

In the fuel system of aircraft engines and spacecraft, it is used to filter fuel and lubricating oil to ensure the reliable operation of the system.
