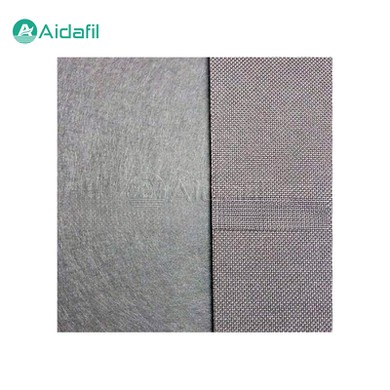

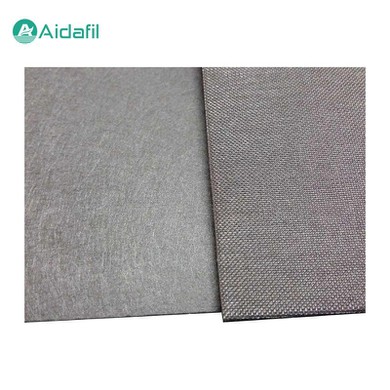

Top Quality Metal Fiber Sintered Felt With Protective Mesh
Product Details
The top quality metal fiber sintered felt with protective mesh is a special filter material and metal materials such as stainless steel are usually used as raw fibers. The sintered felt itself has the characteristics of high temperature and pressure resistance, and the design of the protective mesh further enhances its compressive strength and mechanical strength.
Features
The top quality metal fiber sintered felt with protective mesh has the following significant characteristics:
1. High temperature pressure resistance
Due to the use of metal fibers as raw materials and high temperature sintering treatment, the metal fiber sintered felt with protective mesh has excellent high temperature pressure resistance. It can operate stably for a long time in high temperature and high pressure environments to meet the filtration requirements under various harsh working conditions.
2. High filtration accuracy and contamination capacity
The metal fiber sintered felt with protective mesh has the characteristics of high porosity and uniform pore size distribution, which can achieve high-precision filtration. At the same time, its pollution holding capacity is also large, which can accommodate more impurities and particles.
3. Good corrosion resistance
The metal fiber itself has good corrosion resistance, coupled with the stainless steel wire mesh protection on the surface, so that the metal fiber sintered felt can operate stably in corrosive environments such as acid and alkali for a long time.
4. Excellent mechanical strength and toughness
Through high temperature sintering treatment, a solid three-dimensional network structure is formed between the metal fibers, which makes the metal fiber sintered felt have excellent mechanical strength and toughness. It is not easy to deform and break, and can maintain stable filtration performance under various complex working conditions.
5. Strong customizability
The metal fiber sintered felt with protective mesh can be customized according to customer needs, including different specifications such as precision, thickness, size, etc. This makes it able to adapt to a variety of filtration needs and meet the application requirements of different industries.
Parameters
|
Filter precision (μm) |
Bubbling point pressure (pa) |
Air permeability (L/min, dm2, kpa) |
Porosity (%) |
Containment capacity (mg/cm2) |
Thickness (mm) |
Fracture strength (Mpa) |
|
Basic value |
Basic value |
Basic value |
Basic value |
Basic value |
Basic value |
|
|
5 |
6800 |
47 |
75 |
5 |
0.3 |
32 |
|
7 |
5200 |
63 |
76 |
6.5 |
0.3 |
36 |
|
10 |
3700 |
105 |
75 |
7.8 |
0.37 |
32 |
|
15 |
2450 |
205 |
79 |
8.6 |
0.4 |
23 |
|
20 |
1900 |
280 |
80 |
15.5 |
0.48 |
23 |
|
25 |
1550 |
355 |
80 |
19 |
0.62 |
20 |
|
30 |
1200 |
520 |
80 |
26 |
0.63 |
23 |
|
40 |
950 |
670 |
78 |
29 |
0.68 |
26 |
|
60 |
630 |
1300 |
85 |
36 |
0.62 |
28 |
|
Deviation of 10% |
Deviation of 10% |
Deviation of 10% |
Deviation of 10% |
Deviation of 10% |
Deviation of 10% |
Deviation of 10% |
Application field
The top quality metal fiber sintered felt with protective mesh is widely used in a variety of industrial fields, including:
1. Petrochemical industry
In the petrochemical production process, various filters need to be used to filter out impurities in raw materials and products. The top quality metal fiber sintered felt with protective mesh has become one of the important filtration materials in the petrochemical industry due to its excellent filtration performance, high temperature resistance and corrosion resistance.
2. Pharmaceutical manufacturing industry
In the pharmaceutical manufacturing process, it is necessary to strictly filter and purify raw materials and drugs. The top quality metal fiber sintered felt with protective mesh has high precision, high pollution holding capacity and corrosion resistance, which can meet the filtration needs of the pharmaceutical manufacturing industry.
3. Electronics Industry
In the electronics industry, it is necessary to use pure gas and water to manufacture electronic products. The high-precision filtration performance of the top quality metal fiber sintered felt with protective mesh can remove tiny particles and impurities in gas and water, ensuring the quality and reliability of electronic products.
4. Environmental protection field
In the field of environmental protection, various filters need to be used to treat pollutants such as wastewater and waste gas. The top quality metal fiber sintered felt with protective mesh has become one of the important filter materials in the field of environmental protection due to its excellent filtration performance, high temperature resistance and corrosion resistance.
