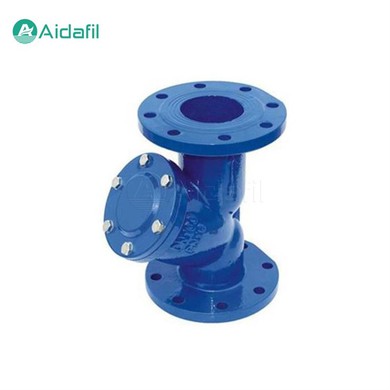

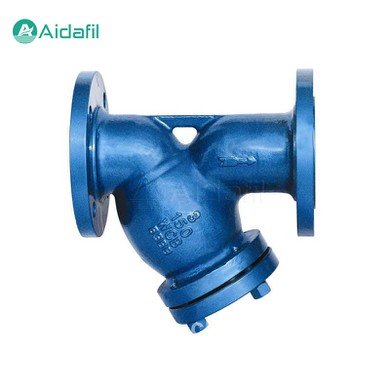

Tight-Structure Y-Type Filter

The tight-structure Y-type filter is a type of filtration equipment widely used in fluid transportation systems. It is mainly used to remove solid particle impurities from fluids to protect subsequent equipment such as pumps, valves, meters, etc. from damage, thus ensuring the stable operation of the system and improving product quality. It has the characteristics of simple structure, good filtration effect and wide application range, so it has been widely used in pipeline systems in chemical, petroleum, pharmaceutical, food and other industries.

When the fluid enters the tight-structure Y-type filter, it first encounters the Y-type shunt structure, which makes the fluid evenly distributed on the filter screen. Due to the existence of the filter screen, impurities are trapped on the surface of the filter screen, while the clean fluid flows out through the pores of the filter screen, realizing a continuous filtration process. As the use time increases, the impurities accumulated on the filter screen increase. At this time, the sewage valve can be opened for backwashing or disassembly to remove the dirt on the filter screen and restore the filtration capacity.

Features

1. High efficiency. It can effectively remove various impurities and particles.

2. Easy to maintain. The drain valve and purge port make it easy to clean and replace the filter basket.

3. Compact design. Small footprint, easy to install in piping systems.

4. Durability. Made of corrosion-resistant materials, it has a long service life.

5. Customizability. Filter basket type and size can be customized according to the specific application.

Parameters

Scope of application

The tight-structure Y-type filters are widely used in the following fields:

1. Chemical industry. Used for the filtration of various liquids, gases, and vapors, such as the import or export pipelines of reactors, heat exchangers, compressors, pumps, and other equipment.

2. Petroleum industry. Used for the filtration of crude oil, natural gas, and petroleum products, such as oil pipelines, gas pipelines, refining units, etc.

3. Pharmaceutical industry. Used for filtration in aseptic production, pharmaceutical preparation, pharmaceutical liquid transportation, etc.

4. Food industry. Used for filtration of beverages, juices, milk and other foods to ensure product quality.

5. Environmental protection industry. Used for filtration during wastewater treatment to achieve the removal of pollutants.

6. Construction industry. Used for filtration in water supply and drainage, heating, air conditioning, and other systems.

Maintenance and upkeep

1. Regularly check the filter and deal with any abnormalities in a timely manner.

2. Regularly clean the filter to maintain the filtration effect.

3. Check the import and export connections to ensure that they are well sealed.

4. Regularly disassemble, clean, and repair the filter to extend its service life.

5. Pay attention to the material of the filter to avoid chemical reactions with the medium that could cause damage to the equipment.

Selection factor

When selecting a tight-structure Y-type filter, consider the following factors:

1. Fluid Type. The type of fluid to be filtered will determine the choice of filter material and filter basket type.

2. Type and size of impurities. The type and size of impurities to be removed will determine the pore size and type of the filter basket.

3. Flow rate. Flow rate will determine the size of the filter and the surface area of the filter basket.

4. Pressure rating. The filter must be able to withstand the pressure in the piping system.

5. Maintenance frequency. The capacity and ease of cleaning of the filter basket will affect the maintenance frequency.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
