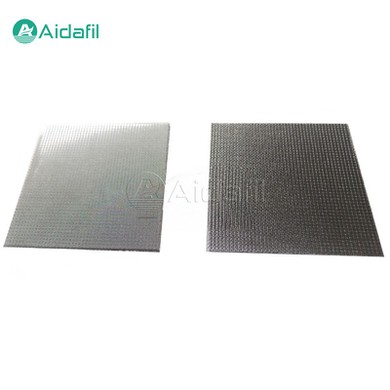

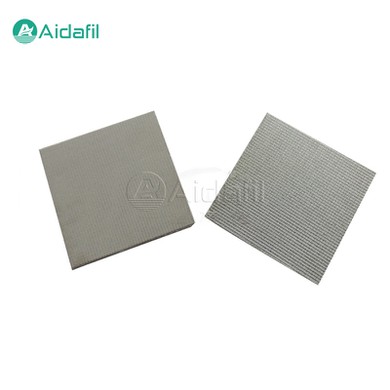

Stainless Steel Fiber Sintered Felt With Single Protective Mesh Layer

The stainless steel fiber sintered felt with single protective mesh layer is a porous material made of stainless steel fiber through a specific sintering process. These fibers are usually made of corrosion-resistant stainless steel, such as 304, 316L, etc., to ensure that the product can maintain stable performance in harsh environments. The sintering process involves high-temperature heating, which causes molecular-level connections between fibers to form a felt-like object with certain strength and stable structure.

The single-mesh design of the stainless steel fiber sintered felt with single protective mesh layer refers to adding a protective layer of metal or other material mesh on one side of the sintered felt to enhance the stability and filtration efficiency of the overall structure, while protecting the main filter material from direct impact of large particles and extending its service life.

Features and advantages

1. Corrosion resistance. The stainless steel material gives it excellent resistance to acid and alkali corrosion, suitable for filtering various chemical media.

2. High filtration accuracy. Customizable filtration accuracy, ranging from micron to nanometer level, to meet the precision filtration needs of different industries.

3. High strength and durability. The sintered fiber has high structural strength, wear resistance, and is not easily damaged after long-term use.

4. Easy to clean and regenerate. Backwashing, chemical cleaning and other methods can be used to effectively remove blockages, achieve reuse, and reduce operating costs.

5. Broad spectrum application. Suitable for water treatment, chemical industry, pharmaceuticals, food and beverages, oil and gas, air purification and other fields.

Application fields

1. Water treatment. It is used for drinking water purification, wastewater treatment, seawater desalination pretreatment, etc., effectively remove suspended matter, bacteria and other impurities.

2. Chemical industry. It is used for fine chemical filtration, solvent recovery, catalyst recovery, etc., corrosion resistance and stable filtration effect.

3. Pharmaceutical field. It is used for filtration of liquid medicines and sterilization filtration of biological preparations to ensure product purity and safety.

4. Food and beverage. It is used for clarification filtration of alcohol, beverages, and edible oils to ensure food safety.

5. Oil and gas industry. It is used for mud filtration in oil and gas production, natural gas desulfurization, etc., to improve resource utilization.

6. Air purification. In environments with strict requirements on air quality such as semiconductors, electronics, and hospital operating rooms, it is used for air purification and sterilization.

Parameters

Manufacturing process

The manufacturing process of the stainless steel fiber sintered felt with single protective mesh layer generally includes the steps of raw material selection, fiber preparation, molding, sintering, post-processing and mesh assembly.

1. Raw material selection. Select stainless steel wire that meets the standards as raw material to ensure the corrosion resistance and mechanical properties of the final product.

2. Fiber preparation. Stainless steel wire is processed into extremely fine fibers through processes such as wire drawing and cutting, and the fiber diameter is generally between a few microns and tens of microns.

3. Molding. The stainless steel fiber is evenly laid or formed into a prefabricated product of a predetermined shape through a special device.

4. Sintering. Under controlled temperature and pressure conditions, heat energy is used to promote the mutual diffusion and bonding of molecules between fibers to form a dense and porous sintered body.

5. Post-processing. Including steps such as cleaning, drying, and surface treatment to improve the cleanliness and surface quality of the product.

6. Mesh assembly. As needed, a metal protective mesh is installed on one side of the sintered felt to enhance its mechanical strength and filtering effect.

Maintenance

1. Regular inspection. Check whether the protective mesh is intact before and after use, and whether there is any deformation or damage.

2. Correct cleaning. Choose a suitable cleaning method according to the nature of the pollutants, and avoid using corrosive cleaning agents.

3. Proper storage. Store in a dry and ventilated place, avoid moisture and heavy pressure to prevent deformation.
