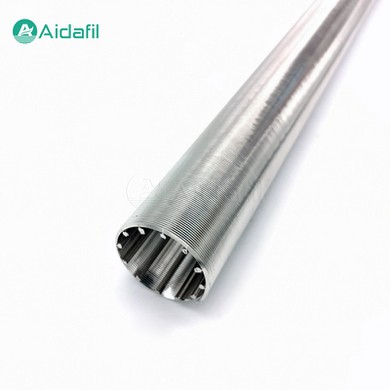

Top Performance Wedge Wire Screen Pipe

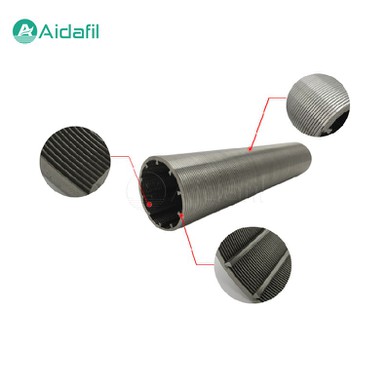

The top performance wedge wire screen pipe, also known as Johnson tube, is a kind of filter material with unique structure and excellent performance. It is mainly composed of wedge wire and support structure. Wedge wire is usually made of high-strength and corrosion-resistant materials such as stainless steel. It is wedge-shaped with a narrow open end and a wide root. These wedge wires are arranged according to a certain pattern to form a series of uniform gaps, which is the key part of filtration. The support structure plays a role in fixing and enhancing the overall strength.

The top performance wedge wire screen pipe is characterized by high filtration accuracy with very small gap size to filter out fine particles in the fluid and achieve high-precision filtration. The special structure of the wedge wire makes the wedge wire screen pipe highly permeable, which can maintain the flow efficiency of the fluid to a large extent and reduce the running resistance. Depending on the application scenario and filtration requirements, wedge wire screen pipes are available in a variety of specifications and sizes. Different sizes and materials can be customized according to the specific needs of customers to meet specific application requirements.

When the fluid passes through the wedge wire screen pipe, the solid particles in it will be intercepted on the surface or gap of the wedge wire according to their size, while the clean fluid can pass smoothly. Its filtration accuracy can be achieved by adjusting the arrangement density and gap size of the wedge wire.

Performance advantages

1. High filtration efficiency

With its unique wedge structure, it can effectively capture particles of various particle sizes and achieve efficient filtration.

2. High strength

High-quality materials and reasonable structural design give it excellent mechanical strength and can withstand greater pressure and impact.

3. Strong corrosion resistance

Especially when facing corrosive fluids, wedge wire screen pipes made of materials such as stainless steel show good corrosion resistance, ensuring long-term stable operation.

4. Good backwashing performance

Easy to backwash, which can remove attached impurities, restore filtration performance, and extend service life.

5. Wide range of applications

It can be used for filtering a variety of fluids such as liquids and gases, and is widely used in many industries such as petroleum, chemical, environmental protection, and food.

Parameters

Application fields

1. Petrochemical industry: Used for crude oil filtration, finished oil filtration, chemical raw material filtration, etc.

2. Water treatment field: Play an important role in sewage treatment, drinking water purification, etc.

3. Mining: Filtration and separation of ore slurry.

4. Food and beverage industry: Filtration and clarification of liquid food.

5. Pharmaceutical industry: Filtration of liquid medicine in the pharmaceutical process.

Manufacturing process

The manufacturing of top performance wedge wire screen pipes usually includes the following main steps: first, select suitable materials and process them to ensure that their performance meets the requirements; then, through precise weaving or welding processes, fix the wedge wire on the support structure according to the design requirements; finally, conduct strict quality inspections to ensure product quality.

Maintenance and upkeep

In order to ensure the good performance of the wedge wire screen pipe, regular maintenance and maintenance are required. Including regular inspection of the status of the screen pipe, timely cleaning of attached impurities, timely replacement of damaged screen pipes, etc. At the same time, pay attention to reasonable operating parameters during use to avoid damage to the screen pipe caused by overpressure and overtemperature.

Why Choose Us

· Professional manufacturer with many years' experience

· Good quality with competitive price

· OEM & ODM are welcome

· Various payment items are acceptable

· Good service by experienced manager

AIDA Philosophy

1. Management Concept:

· Satisfy the customers' demand --- Touch customers, trust with our products and services

· Make employees happy --- Pursue higher material and spiritual happiness

2. Company Mission:

· Focus on customer needs, provide best filtering solution

· To be the lifelong partner with customers

3. Corporate Vision:

· Become a global purification leadership brand

4. Values:

· Customer: Pursue the ultimate experience, enjoy excellent quality

· Team: Trust, responsibility, growth, win-win

· Work: Simple, sincere, efficient, dedicated
